Single Girder
Overhead
Standard manufacturing. Reliable performance. Capacities from 1 to 25 tonnes — rolled mill girders to 18 m spans, welded box girders beyond. Low headroom, light weight, and low cost of ownership for workshops, warehouses and production facilities.
Single Girder
Overhead
Lower Investment, Lighter Structure
A single girder requires less steel than a double girder equivalent — lower material cost and lighter dead weight means reduced wheel loads on the runway beams, which in turn lowers the structural cost of the building support system. For capacities up to 25 tonnes, this delivers the same operational capability at a significantly better price-to-performance ratio.
Rolled or Welded Girder to Any Span
Spans up to 18 metres use rolled mill profile girders for maximum rigidity with minimum fabrication cost. Beyond 18 metres, custom welded box girders are used — individually designed for the span, capacity, and duty cycle. Bridge girder connections to the runway beam are optimised for your ceiling construction with multiple variants, allowing optimum space utilisation even in low-ceiling buildings.
Smooth Motion, Long Service Life
Specially designed motors and gearboxes provide smooth start and stop on all axes — eliminating the sudden jerks that cause accelerated wear. Cesan guarantees minimum hook movement, minimum lateral load swing, minimum approach dimensions, and minimum abrasion on every crane — all contributing to the lowest total cost of ownership over the crane's full service life.
Single Girder — 1 to 25 Tonnes

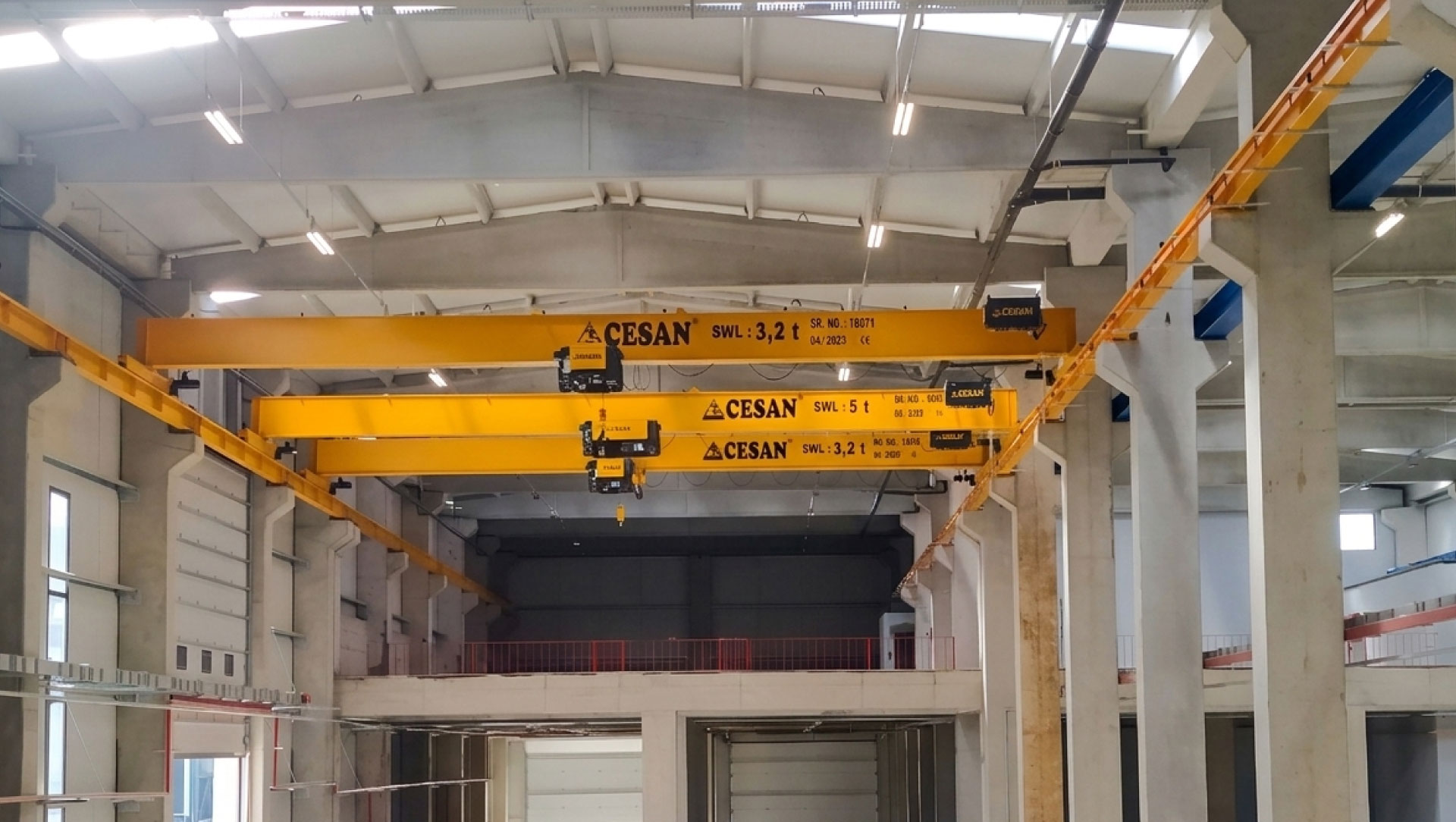

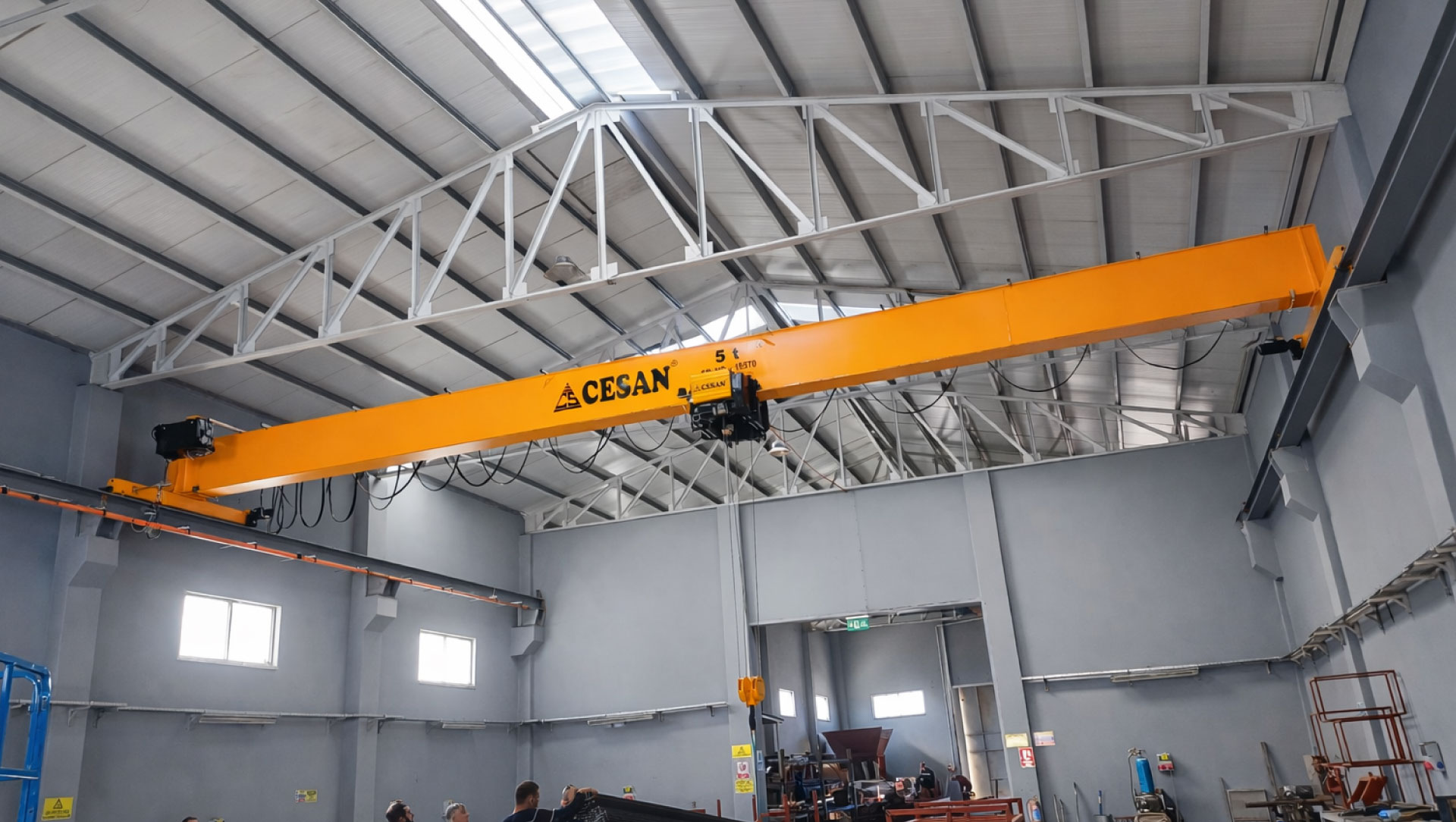

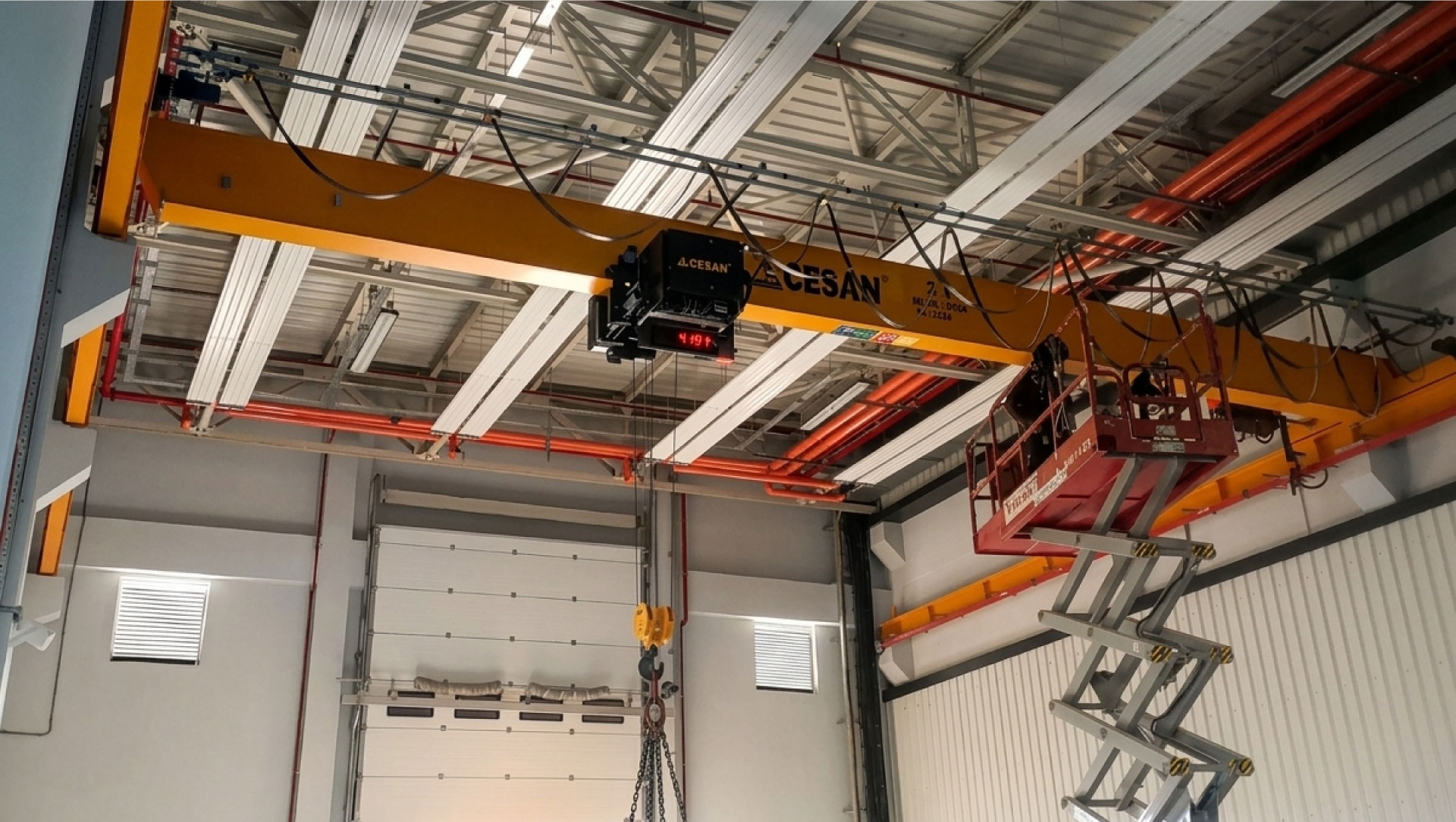

The Cesan Single Girder Overhead Crane is manufactured as a standard crane through the full Cesan production process — every unit delivered to the same quality standards as the heavier double girder range. Capacities from 1 to 25 tonnes cover the vast majority of general industrial lifting requirements in workshops, warehouses, assembly lines, and production facilities.
Single girder overhead crane systems are available with VH L models supporting loads up to 12.5 tonnes and VH N models capable of handling up to 25 tonnes. These cranes can be supplied as cranes, crane kits, or complete crane systems. With compact installation dimensions and minimal lateral hook movement, they ensure high efficiency and precision even in confined spaces — optimal approach dimensions enable safe and precise load handling.
Featuring dual-speed or stepless VFD speed control options, these systems provide operators with full control. The crane bridge girder is individually adapted to the ceiling construction and available headroom using multiple connection variants to the runway beam — the right choice for industrial facilities seeking strong, reliable, and flexible lifting solutions.
- Appropriate for low headroom and short span plants
- Light for transportation and stacking — reliable, economic solution
- Highly optimised for installation — less load on plant structure
- Higher lifting height via runway beams connected to roof (Underslung type)
- Rolled mill profile girders to 18 m — welded box girder beyond
- Button control along girder or radio remote control
- Minimum hook movement, minimum approach distance, minimum waving
- Low maintenance cost, short delivery terms, smart pricing
Key Specifications
Configured to your span, lifting height, hoist type, and duty class.
Choose Your Lifting Mechanism
Monorail Rotating Hoist
Single-rail rotating hoist for applications where the load must be rotated or positioned laterally without moving the bridge. Ideal for assembly lines, maintenance bays, and repetitive pick-and-place tasks along a defined travel path.
Electric Wire Rope Hoist
High-cycle wire rope hoist for capacities up to 25 tonnes. Compact low-headroom design travels on the bottom flange. VH L model handles up to 12.5 T; VH N model handles up to 25 T. Dual-speed or stepless VFD control as required.
Electric Chain Hoist
Cost-competitive chain hoist for light-duty single girder applications or where an extra-competitive price point is required. Compact, reliable, and well-suited to small workshops and maintenance areas. Capacities from 125 kg to 5 T.
Full Specifications
| Parameter | Value / Range | Notes |
|---|---|---|
| Lifting capacity | 1 T — 25 T | Standard steps: 1/2/3.2/5/8/10/16/20/25 T; custom on request |
| Span | 1 m — 28.5 m | Rolled girder to 18 m; welded box girder beyond 18 m |
| Lifting height | 6 m — 24 m | Other heights on request |
| Working class | A3, A4, A5 | FEM duty classification (M3–M5) |
| Crane travelling speed | 20 m/min or 30 m/min | Dual-speed standard; VFD stepless on request |
| Hoist travelling speed | 2 – 20 m/min | Dual-speed or VFD option |
| Hoist lifting speed | 0.8/5 m/min (dual) | Stepless VFD on request |
| Girder type | Rolled mill profile / Welded box | Profile girder to 18 m span; box girder beyond |
| Hoist system | Monorail / ZX Wire Rope / LX Chain | VH L to 12.5 T; VH N to 25 T (wire rope) |
| Control | Pendant buttons / Radio Remote | Dual-speed buttons on all axes; tandem option |
| Power supply | DSL conductor rail / Cable reel | 380V 50Hz 3-phase or custom |
| Motor / gearbox | Smooth start/stop design | Minimum hook swing and minimum abrasion |
| Ambient temperature | −20 °C to +40 °C | Special ranges on request |
| Motor protection | IP54 standard | IP55 / Ex-proof / ATEX on request |
| Design standards | FEM / DIN / CE | Full CE documentation and short delivery terms |
Standard & Optional Features
Standard Features
- Dual-speed control on all crane axes (slow/fast)
- End limit switches + emergency limit switch
- Overload protection — trips at rated SWL
- Hooter + flasher (travel motion indicators)
- Under-bridge lighting
- Anti-collision system (infrared)
- Low-noise direct drive motor with disc brake
- Sealed bearings — lubricated for life
- Energy-efficient motors, IP54 protection
- DSL conductor rail power supply
- CE certification + full technical documentation
Optional Features
- VFD stepless speed control on all motions
- Radio remote control
- Tandem / synchronous operation (multiple cranes)
- Monorail rotating hoist integration
- Load indicator with or without display
- Anti-sway / sway control system
- Automation for target positioning
- Grab, electromagnet, or C-hook spreader
- Underslung (under-running) configuration
- Explosion-proof / ATEX certification
- Custom RAL colour finish
Manufacturing & Assembly
Component transfer, press feed, and sub-assembly handling across production lines and machine shops.
Warehouses & Logistics
Pallet, coil, and bulk goods handling in distribution centres and storage facilities with existing roof structure.
Steel & Metal Processing
Coil, sheet, and section handling in steel service centres, metal workshops, and rolling mills.
Construction & Precast
Precast element handling and heavy plant lifting in indoor construction environments and covered yards.
Engine & Maintenance Bays
Safe engine removal, heavy component exchange, and precision installation in automotive and service bays.
Power Stations & Utilities
Turbine component, transformer, and heavy equipment handling in energy generation facilities.
Mining & Heavy Industry
Rugged A5-rated configurations for demanding production cycles, ore handling, and equipment maintenance.
Food & Pharmaceutical
Hygienic-grade configurations for ingredient vessel handling, packaging lines, and cleanroom environments.
The Right Overhead Crane for Your Facility
Tell us your capacity, span, lifting height, hoist preference, and available headroom. Our engineers will configure the right single girder crane and send a full technical proposal — typically within 48 hours.
